VSE Smart Steering

VSE Smart Steering

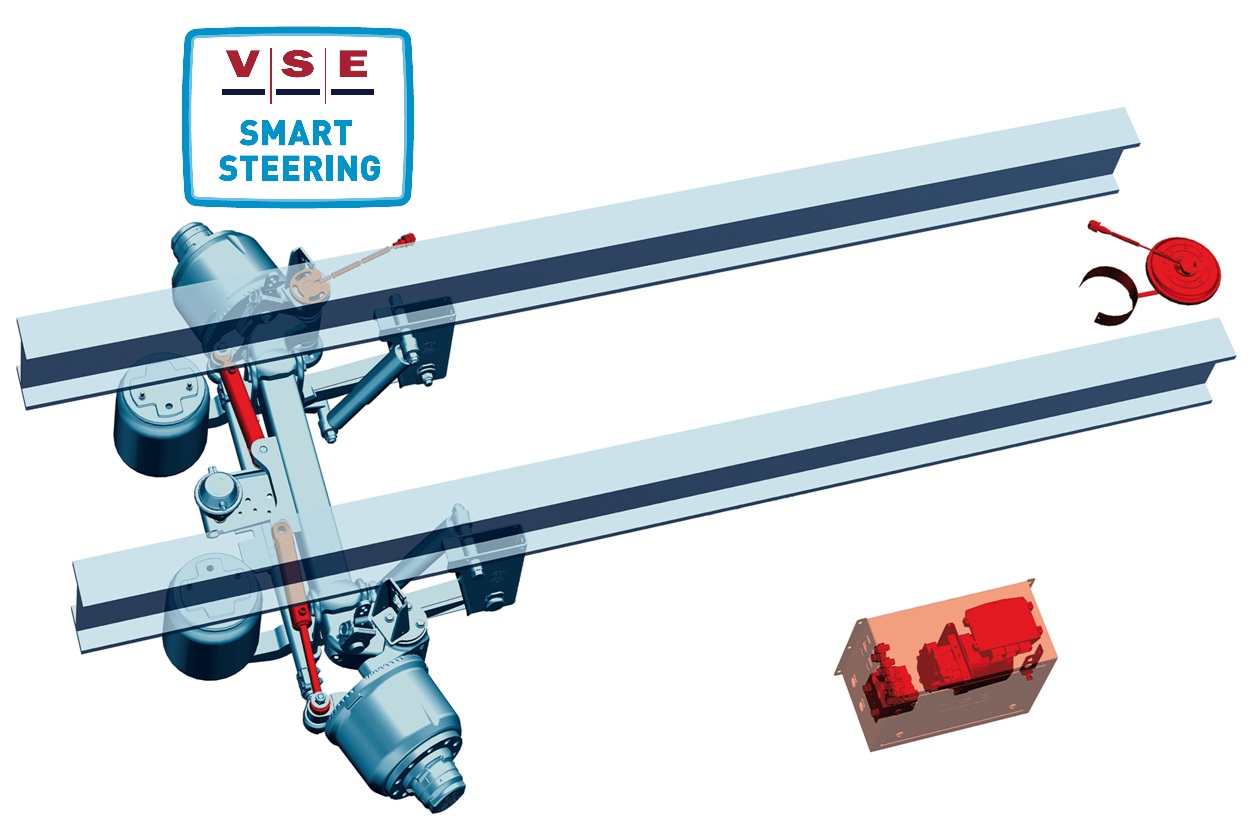

VSE Smart Steering is an electrohydraulic steering assistance system that allows a self steer axle to be steered active during forward and reverse driving of a trailer. It is a standard system for one self steer axle.

Contact

Enables self steer axles to steer!

THE SYSTEM

THE SYSTEM

The big advantage is that it is now possible to make a trailer with a self steer axle more efficient and suitable for a broader range of loading and unloading situations. After all, the rear axle no longer has to be set to a fixed position when driving in reverse.

In addition, with a self steer axle you can reach multiple locations without manoeuvring. This saves you a lot of time and provides more options at loading and unloading locations!

TECHNICAL POSSIBILITIES

TECHNICAL POSSIBILITIES

  • Standard Software
  • One size stainless steel system locker with removable cover. Two steering cylinders, an angle sensor, a kingpin and various cables are also supplied
  • Suitable for one self steer axle with an axle load up to 10 tonnes
  • Possible with a self steer axle from BPW, SAF, Gigant and Tecma.
  • System temperature range: -30 to +40 °C
  • The system weighs 40 kg
  • Can be retrofitted with VSE Smart Steering Retrofit

ENERGY SUPPLY

ENERGY SUPPLY

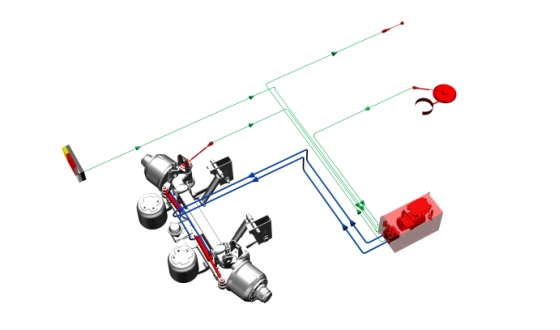

The truck batteries and the VSE System Locker must be connected with a power cable, possibly in combination with a spiral cable.

Track rod cylinder

Track rod cylinder

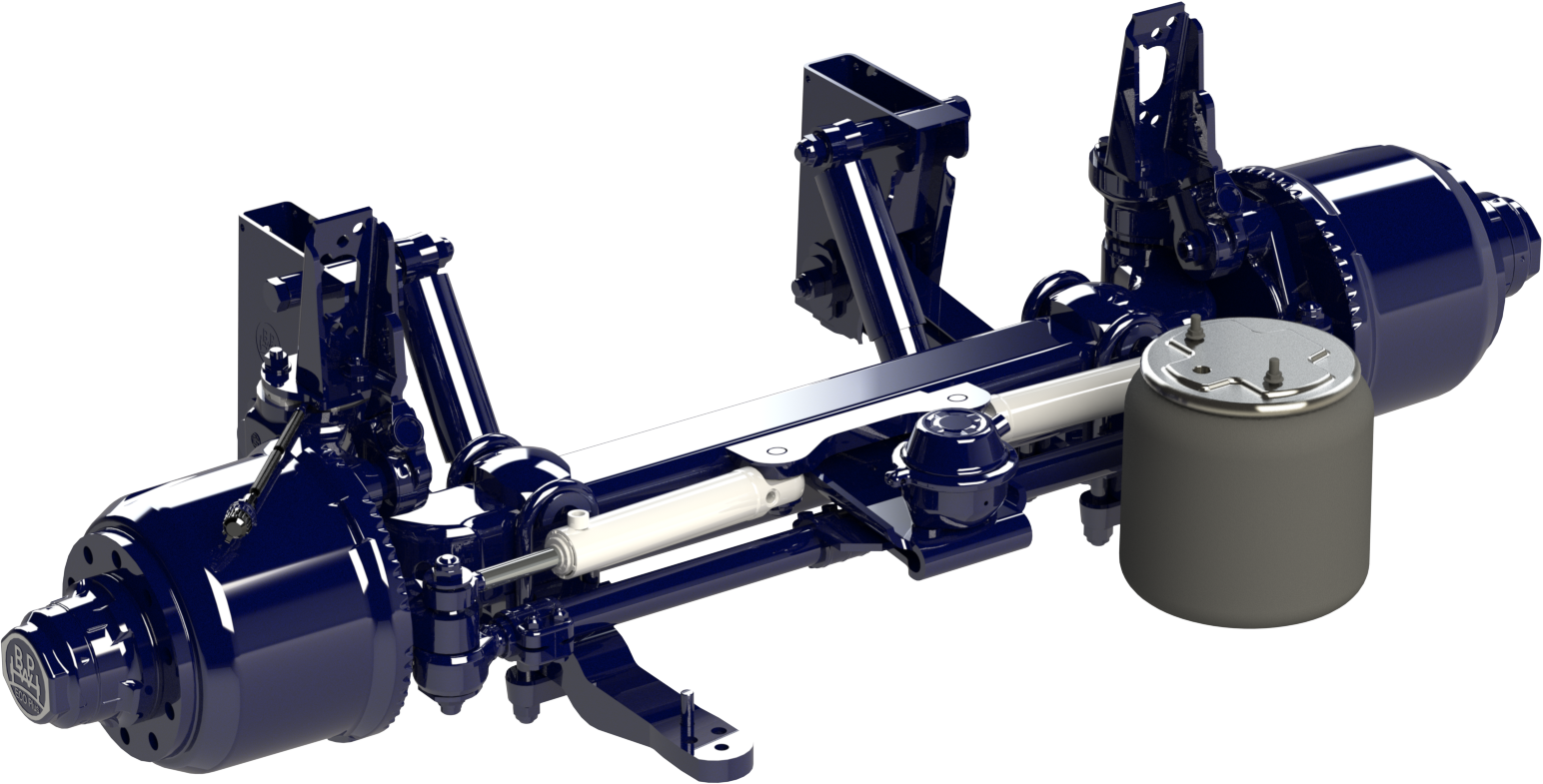

Track rod cylinder with integrated air locking device.

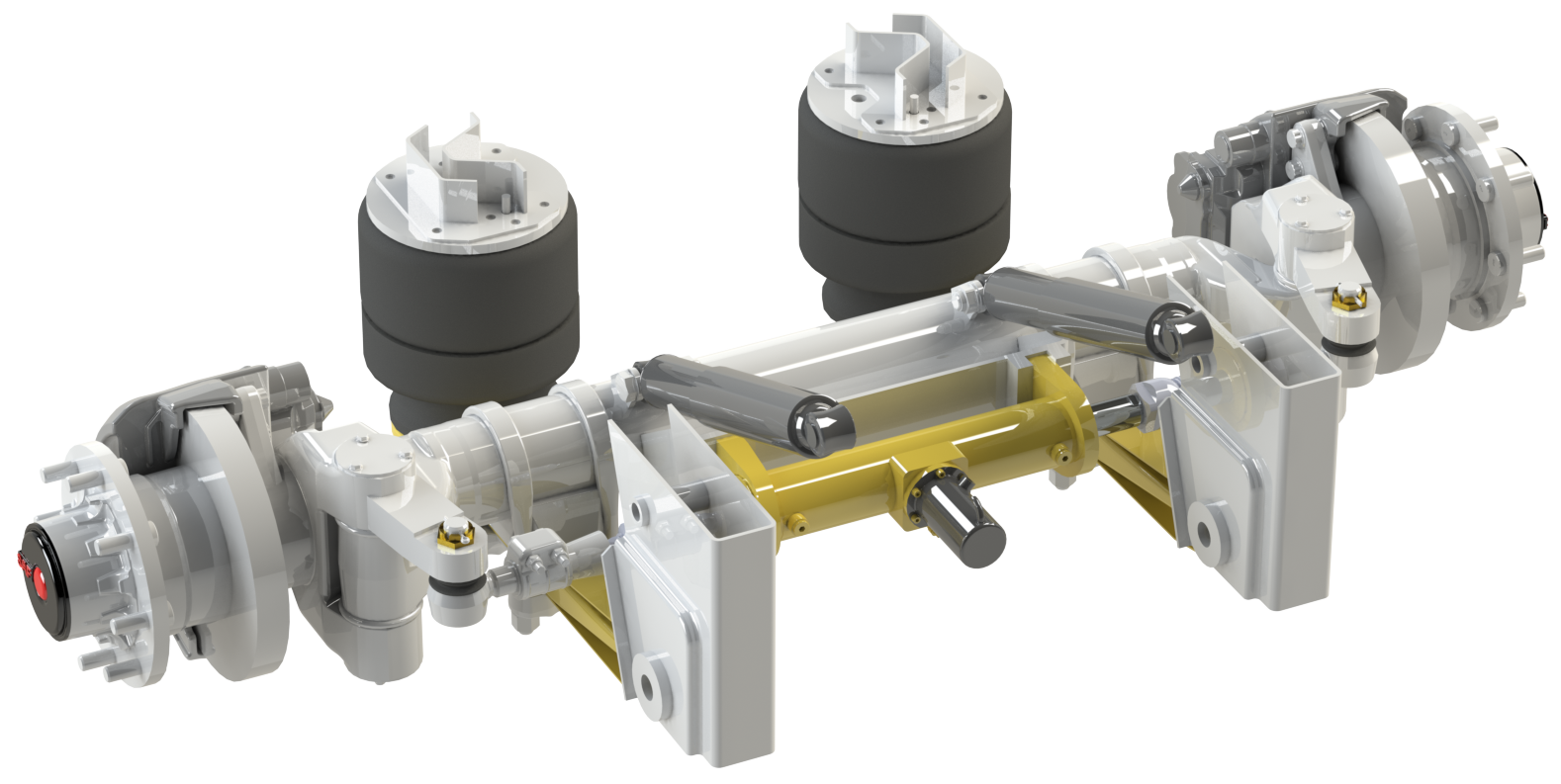

2 cylinders

2 cylinders

2 cylinders
