VSE Dynamic Truck Rear Suspension is hydropneumatic suspension for the rear axle(s) of a truck. Front axle(s) use a conventional suspension system. The system has an automatic and manual height control.
ContactTHE COMPACT SUSPENSION SYSTEM
THE SYSTEM

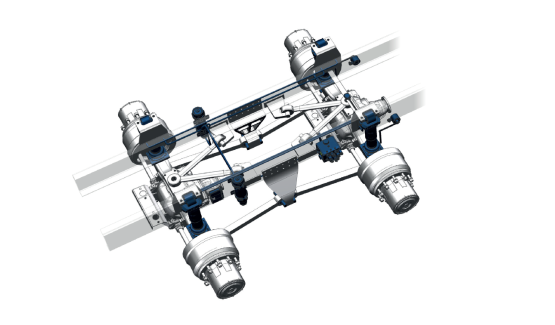

The suspension system replaces spring assemblies, air springs, shock absorbers and stabiliser rods. The hydraulic cylinders bear the weight of the vehicle, the suspension is provided by accumulators and integrated shock absorber valves provide the damping.
Because the system consists of few components, and therefore requires little installation space, VSE Dynamic Truck Rear Suspension is ideally suited for retrofit applications.
VSE Dynamic Truck Rear Suspension ensures optimum driving comfort, axle load distribution and stability (loaded, with partial load or unladen).
TECHNICAL SPECIFICATIONS
- Rear axle(s)
- Compatible with rigid axles, independent suspension, driven and non-driven axles
- Maximum axle load of 20 tonnes
- Cylinders are customer-specific
- All components can be mounted in the chassis
- Weight from 95 kg for one axle
OPTIONS
- Axle lifts (automatic)
- 2 extra driving heights
- Automatic levelling system
- Weight indicator
- Integrated shock absorber
- Traction aid
- Off-road mode
- Container lowering function
