RETROFIT

RETROFIT

VSE has a steering system for retrofitting trucks: VSE Electronic Truck Steering Retrofit. Four versions of this steering system are available, and it comes with a compact, standard system locker.

Benefits retrofit

  • SPACE SAVINGSPACE SAVING

    The system is very compact, so little space is needed for installation

  • EASY INSTALLATIONEASY INSTALLATION

    There are few components, so the system can be installed easily

  • FLEXIBILITYFLEXIBILITY

    An axle steered by the system can be located anywhere in the chassis

Retrofit bestaat uit de volgende systemen eng

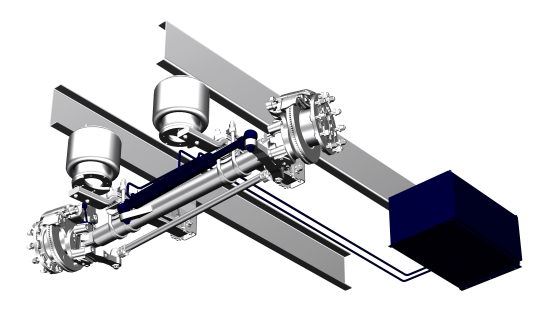

M PUMP, 1 STEERED AXLE

M PUMP, 1 STEERED AXLE

  • System locker with manifold block, accumulator, ECU and diagnostic display
  • Steering cylinder (axle load 6-12 tonnes)
  • Front angle sensor (mounted on steering housing, mounting on axle, mounting on chassis with lever arm)
  • Rear angle sensor (integrated, shaft mounting with lever)
  • Wiring harness

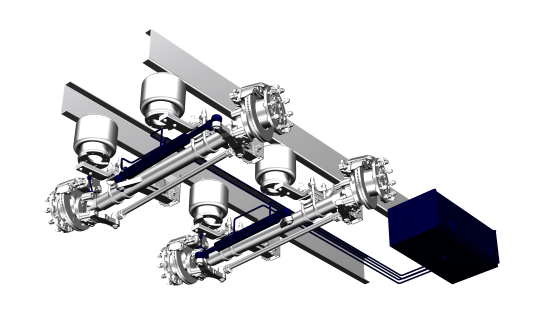

M PUMP, 2 STEERED AXLES

M PUMP, 2 STEERED AXLES

  • System locker with manifold block, accumulator, ECU and diagnostic display
  • Steering cylinder (axle load 8-12 tonnes)
  • Front angle sensor (mounted on steering housing, mounting on axle, mounting on chassis with lever arm)
  • Rear angle sensor (integrated, shaft mounting with lever)
  • Wiring harness

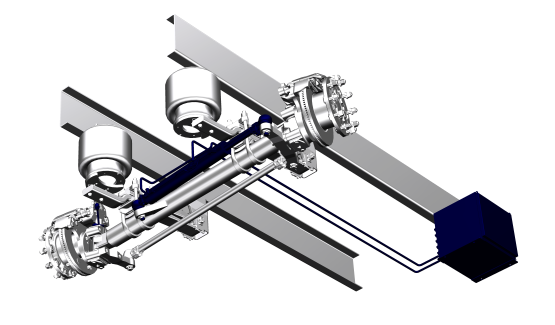

E PUMP, 1 STEERED AXLE

E PUMP, 1 STEERED AXLE

  • System locker with manifold block, accumulator, ECU, diagnostic display, power pack
  • Steering cylinder (axle load 6-12 tonnes)
  • Front angle sensor (mounted on steering housing, mounting on axle, mounting on chassis with lever arm)
  • Rear angle sensor (integrated, shaft mounting with lever)
  • Wiring harness

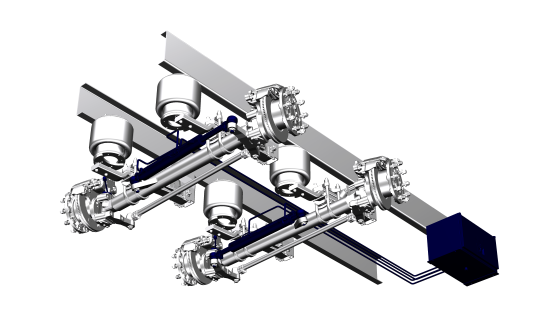

E PUMP, 2 STEERED AXLES

E PUMP, 2 STEERED AXLES

  • System locker with manifold block, accumulator, ECU, diagnostic display, power pack
  • Steering cylinder (axle load 8-12 tonnes)
  • Front angle sensor (mounted on steering housing, mounting on axle, mounting on chassis with lever arm)
  • Rear angle sensor (integrated, shaft mounting with lever)
  • Wiring harness
